CQJB Permanent Magnet Mixer
The energy loss of the motor is very low, with super high efficiency and simple structure. It is a good energy-saving motor.
Keywords:
Category:
Mixer
Product description
Permanent magnet motor uses permanent magnet to generate the magnetic field of the motor. The energy loss of the motor is very low, with super high efficiency and simple structure. It is a good energy-saving motor.
With the emergence of high performance permanent magnet materials and the rapid development of control technology, the application of permanent magnet motors has become more extensive, almost throughout the national defense, rail transit, industrial production and urban sewage treatment and other fields. Such as permanent magnet blower, permanent magnet electric pump, permanent magnet mixer, permanent magnet return pump and other precise speed and position transmission systems with good dynamic performance are required, and permanent magnet motors are widely used.
Range of Application
Permanent-magnet submersible mixer is applicable to the balance tank, nitrification reaction tank and storage tank of sewage treatment plant, as well as stirring the liquid containing suspended solids in the industrial process to prevent sedimentation; It can also be used to create water flow during circulation and nitrification, denitrification and dephosphorization stages.
Product parameter
S/N | Model | Power KW | Rated current A | Motor efficiency % | Power factor (PF) | Impeller diameter mm | Impeller speed r/min | Thrust N | Weight kg | Installation System |
1 | CQJB1.5/8-400/3-750S | 1.5 | 2.7 | 85.4 | 0.93 | 400 | 750 | 600 | 65 | System II |
2 | CQJB2.5/8-400/3-750S | 2.5 | 4.7 | 86.97 | 0.93 | 400 | 750 | 800 | 70 | System II |
3 | CQJB3/8-400/3-750S | 3 | 5.5 | 87.7 | 0.935 | 400 | 750 | 800 | 75 | System II |
4 | CQJB4/6-400/3-1000S | 4 | 7.1 | 89.2 | 0.941 | 400 | 1000 | 1200 | 73 | System III |
5 | CQJB4/12-620/3-500S | 4 | 6.5 | 92 | 0.97 | 620 | 500 | 1400 | 184 | System III |
6 | CQJB5.5/12-620/3-500S | 5 | 8.9 | 92.5 | 0.97 | 620 | 500 | 1800 | 184 | System III |
7 | CQJB7.5/12-620/3-500S | 7.5 | 12 | 93 | 0.97 | 620 | 500 | 2600 | 229 | System III |
8 | CQJB11/12-620/3-500S | 11 | 17.6 | 94 | 0.97 | 620 | 500 | 3300 | 229 | System III |
9 | CQJB15/12-620/3-500S | 15 | 24 | 94.2 | 0.97 | 620 | 500 | 4500 | 280 | System III |
10 | CQJB18.5/12-620/3-500S | 18.5 | 29.5 | 94.5 | 0.97 | 620 | 500 | 5000 | 310 | System III |
11 | CQJB22/12-620/3-500S | 22 | 35 | 95 | 0.97 | 620 | 500 | 6500 | 350 | System III |

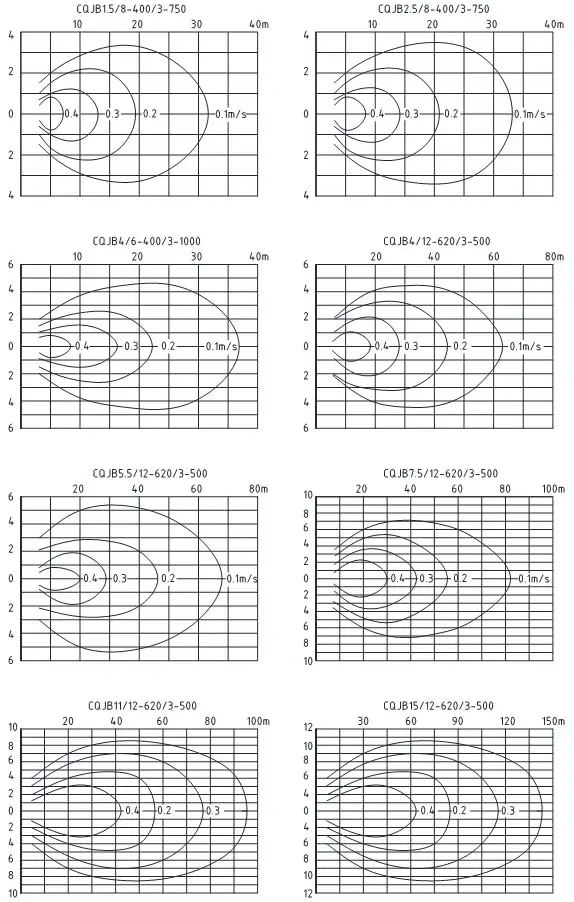

Flow velocity diagram

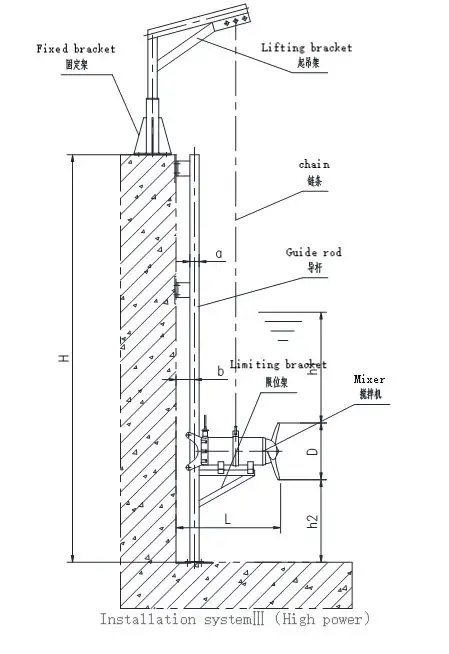

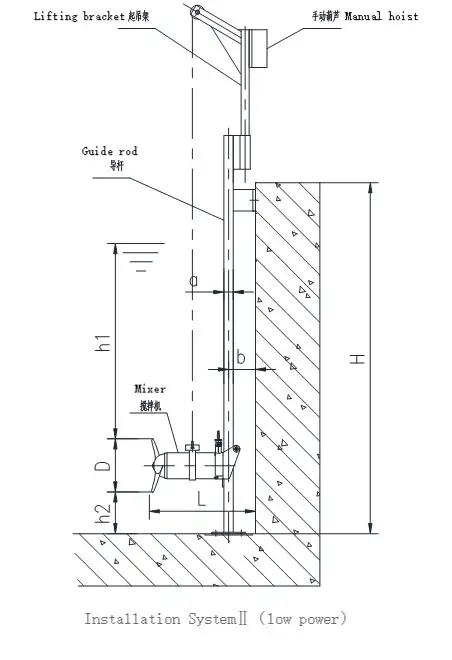

System Installation
