GH Series Tubular Mixer
The dosing tube of the tubular mixer is placed in the upstream of the mixer.
Keywords:
Category:
Mixer
Product description
The dosing tube of the tubular mixer is placed in the upstream of the mixer. After the raw water is added to the reagent, it is divided several times when it passes through the mixing components, and the positive and negative swirl movement and cross mixing are generated, so that the reagent and the raw water are fully mixed and discharged.
Range of Application
GH tubular mixer is used in water plant and sewage treatment plant for chemical dosing and mixing, so as to fully mix the chemical with raw water.
Product Features
1. It adopts foreign advanced technology, with good mixing effect and small head loss;
2. The products are connected in series in the transmission pipeline, which will not occupy additional space and save the project land;
3. No moving parts, only hydraulic wear of each component, long service life, no maintenance;
4. Simple structure, safety and convenience;
5. This series uses three crossed mixing elements, and the number of mixing elements can be changed according to the process needs.
Introduction to Structure

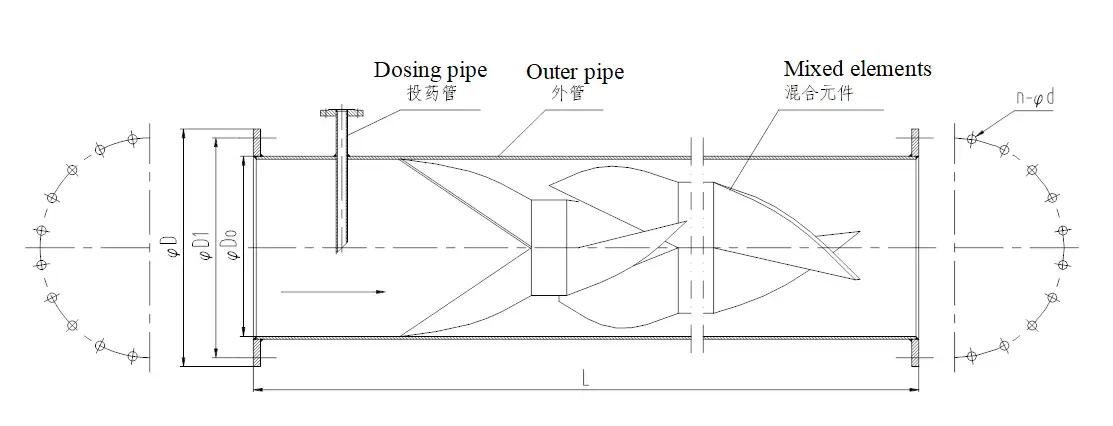

As shown in the figure, the tubular mixer is composed of dosing tube, mixing element and outer tube. The dosing pipe is located at the upstream of the mixer. After the raw water is dosed with the chemical, it will produce multiple split cutting, forward and reverse swirl movement and cross mixing when passing through the mixing elements, so that the chemical and the source water are fully mixed and then discharged.
Product Parameters
Model No | Pipe diameter DN (mm) | Dosing port φ D (mm) | Pipe length L | Flange size (mm) PN1.6MPa | Number of screw holes n | Diameter of screw hole φ D | Flow Q m3/h | Total loss (m) | Mass kg | ||
D0 | D | D1 | |||||||||
GH-80 | 80 | 25 | 500 | 80 | 200 | 160 | 8 | 18 | 8 | 0.06 | 25 |
GH-100 | 100 | 25 | 600 | 100 | 220 | 180 | 8 | 18 | 12 | 0.06 | 30 |
GH-150 | 150 | 25 | 600 | 150 | 285 | 240 | 8 | 22 | 28 | 0.06 | 42 |
GH-200 | 200 | 25 | 800 | 200 | 340 | 295 | 12 | 22 | 46 | 0.06 | 70 |
GH-250 | 250 | 25 | 1000 | 250 | 405 | 355 | 12 | 26 | 65 | 0.06 | 95 |
GH-300 | 300 | 25 | 1200 | 300 | 460 | 410 | 12 | 26 | 92 | 0.06 | 125 |
GH-350 | 350 | 25 | 1400 | 350 | 520 | 470 | 16 | 26 | 146 | 0.08 | 170 |
GH-400 | 400 | 25 | 1600 | 400 | 580 | 525 | 16 | 30 | 250 | 0.12 | 210 |
GH-450 | 450 | 25 | 1800 | 450 | 640 | 586 | 20 | 30 | 367 | 0.16 | 250 |
GH-500 | 500 | 32 | 2000 | 500 | 715 | 650 | 20 | 34 | 460 | 0.16 | 300 |
GH-600 | 600 | 32 | 2400 | 600 | 840 | 770 | 20 | 36 | 900 | 0.29 | 500 |
GH-700 | 700 | 32 | 2800 | 700 | 910 | 840 | 24 | 36 | 1350 | 0.33 | 660 |
GH-800 | 800 | 40 | 3200 | 800 | 1025 | 950 | 24 | 39 | 2250 | 0.69 | 850 |
GH-900 | 900 | 40 | 3600 | 900 | 1125 | 1050 | 28 | 39 | 3000 | 0.57 | 1100 |
GH-1000 | 1000 | 65 | 4000 | 1000 | 1255 | 1170 | 28 | 42 | 3500 | 0.57 | 1300 |
