WLS Shaftless Screw Conveyor
WLS shaftless screw conveyor consists of shaftless screw, U-shaped groove, liner plate, cover plate, inlet and outlet and driving device.
Keywords:
Category:
Conveyor
Product Description
WLS shaftless screw conveyor consists of shaftless screw, U-shaped groove, liner plate, cover plate, inlet and outlet and driving device.
Materials are input from the feed inlet and output from the discharge outlet after being pushed by the screw.
Range of Application
It is used in the sewage treatment plant to convey materials such as slag from the medium and fine screen cleaner and sludge cake after sludge dewatering.
Product Features
1. Simple structure, no bearing in chute, smooth material conveying and easy maintenance.
2. As required, our unique cardan joint coupling can be used to completely eliminate the hidden dangers of shaft breakage.
3. Except that the inlet and outlet are open, other parts can be covered and closed, so that materials will not overflow and air pollution will be reduced.
Product Parameters
Model | Reference conveying capacity m3/h | size(mm) | Conveying length(m) | Mounting angle( Degree) | ||||||||
The rotating speed is 20r/min | ||||||||||||
0° | 15° | 30° | A | B | H | L1 | L2 | L3 | B1 | |||
WLS260-N | 2.5 | 1.8 | 1.4 | 260 | 360 | 270 | 150 | ≦70 | 400 | 280 | ≦20 | ≦30 |
WLS300-N | 5 | 4 | 2.2 | 300 | 400 | 310 | 200 | ≦70 | 400 | 350 | ≦30 | |
WLS320-N | 6 | 4.5 | 3 | 320 | 420 | 330 | 200 | ≦70 | 450 | 350 | ||
WLS355-N | 8.5 | 6.2 | 4.5 | 355 | 460 | 370 | 250 | ≦70 | 450 | 400 | ||
WLS400-N | 10.5 | 8.5 | 6 | 400 | 500 | 410 | 250 | ≦70 | 450 | 400 | ||
WLS420-N | 12 | 9.5 | 7 | 420 | 520 | 430 | 250 | ≦70 | 450 | 400 | ||
WLS500-N | 15 | 12 | 9 | 500 | 600 | 510 | 250 | ≦70 | 450 | 500 | ||
WLS260-Z | 4 | 2.8 | 1.8 | 260 | 360 | 270 | 150 | ≦70 | 600 | 280 | ≦20 | |
WLS300-Z | 7.5 | 5.5 | 4.5 | 300 | 400 | 310 | 200 | ≦70 | 600 | 350 | ||
WLS320-Z | 10.6 | 7.4 | 5.6 | 320 | 430 | 330 | 200 | ≦70 | 600 | 350 | ||
WLS355-Z | 12.6 | 8.9 | 6.4 | 355 | 460 | 370 | 250 | ≦70 | 650 | 400 | ≦30 | |
WLS400-Z | 15.2 | 11.5 | 6.5 | 400 | 500 | 410 | 250 | ≦70 | 650 | 400 | ||
WLS420-Z | 16.8 | 12.3 | 7.6 | 420 | 520 | 430 | 250 | ≦70 | 650 | 400 | ||
WLS500-Z | 21.5 | 17.5 | 10.5 | 500 | 600 | 510 | 250 | ≦70 | 650 | 400 | ||

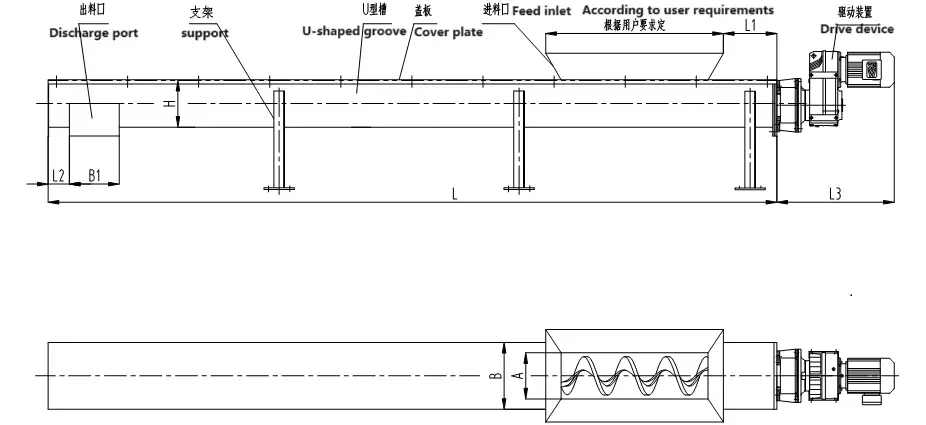

Overall dimensions of main machine of shaftless screw conveyor

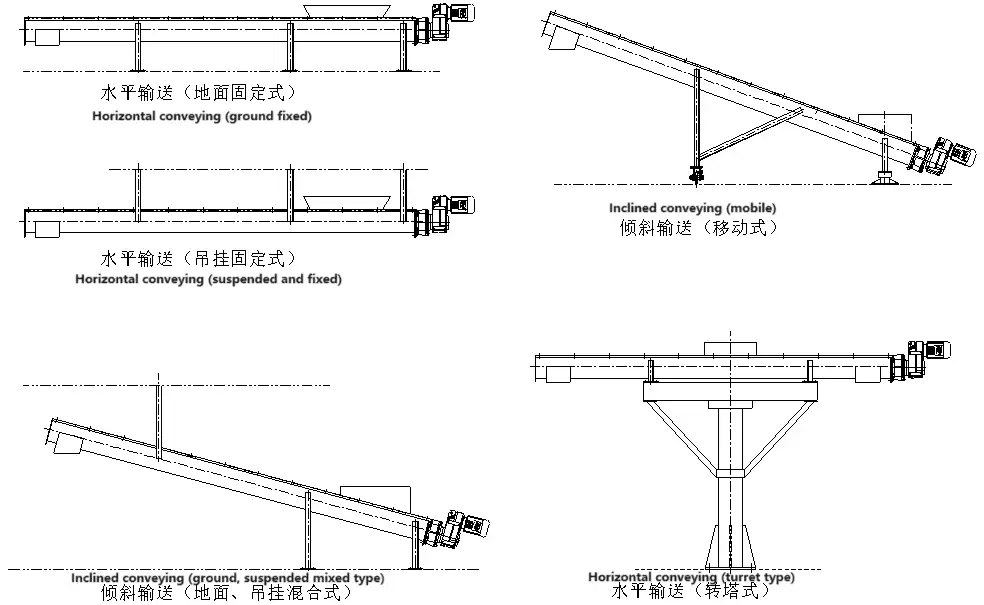

Installation method
